Spool

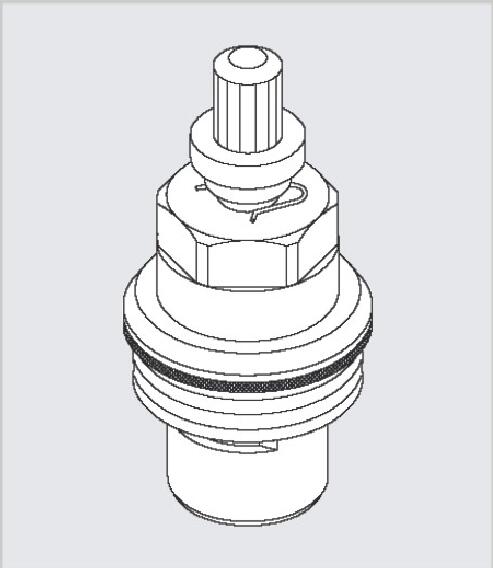

Ceramic   Spool
Different with rubber, the ceramic spool not only has longer service life, but also won' t expand or shrink with water (especially hot water)



For general domestic water

General ceramic spool
Switch working angle: 90°
Maximum working pressure: 10 bar.
Maximum test pressure: 15 bar
Temperature range: 0°~90°
Leakage rate: 1x 10-3mbar l/s.


Purified water spool

For purified water
Switch working angle: 360°
Maximum working pressure: 7 bar.
Maximum test pressure: 10 bar
Temperature range: 0°~90°
Leakage rate: 1x 10-3mbar l/s.



Gas  ceramic  spool

For non-toxic, non-corrosive and combustible gas Natural gas, Propane, Butane, Acetylene, and Hydrogen
Switch working angle: 90°
Maximum working pressure: 7 bar.
Maximum test pressure: 10 bar
Leakage rate: 1x 10-3mbar l/s.



Gas needle spool

For pumping vacuum, non-toxic, non-corrosive and non-combustible gas;compressed air, nitrogen, carbon dioxide, argon, and Helium, etc.needle valve rod
Switch working angle: 1.5 x 360°
Maximum working pressure: 10 bar.
Maximum test pressure: 15 bar
Temperature range: 0°-90°C
Leakage rate: 1x 10-3mbar l/sh
